Explosive hull decompression sounds the same in any language.

Brother Oram, Flesh Eaters Assault Marine

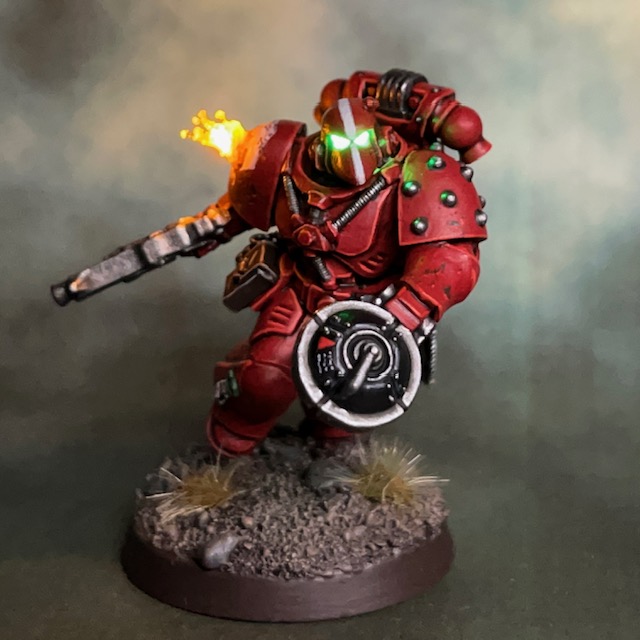

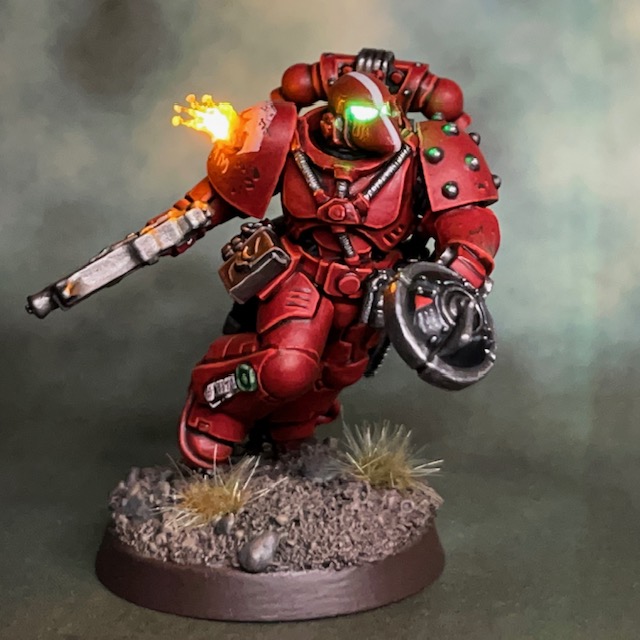

It’s back to the Flesh Eaters project this week with Brother Oram, an explosive-equipped Assault Intercessor. Brother Oram is technically the first member of a new Assault Intercessor squad, but for the moment he will join Squad Levers for games of Kill Team as a grenadier specialist.

Building & Painting

I used the techniques described in my LED Eye Lens tutorial to create the effects of Brother Oram’s helmet. The only significant difference worth noting is that I used a TruOpto 1.8mm Green LED instead of the red LED described in the tutorial.

Oram’s bullet ricochet effects were achieved using the techniques described in my Simple LED Muzzle Flare tutorial, only with the “flares” coming from the armour rather than a gun barrel. The two LEDs on this model are connected in parallel and both powered from the same battery and switch.

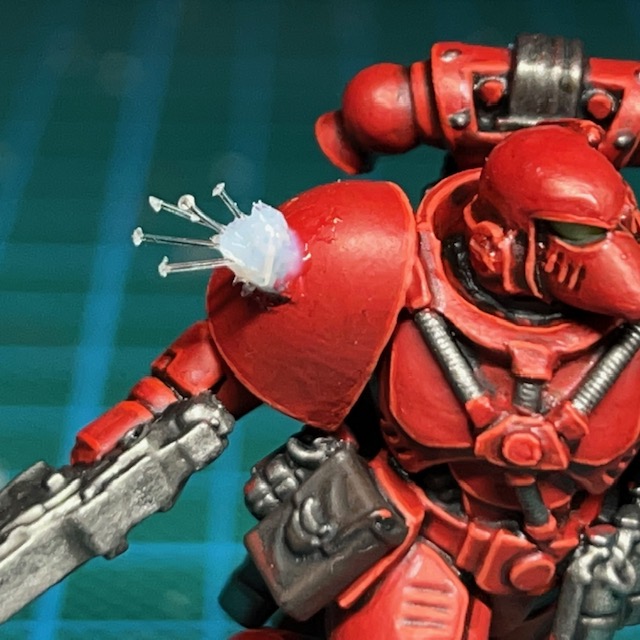

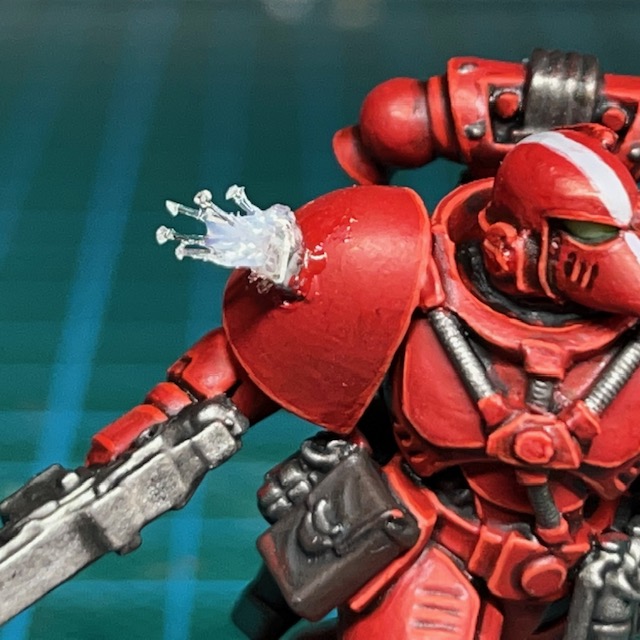

In the images below you can see the exposed LED on the left, and then the impact effects after the acrylic gel had been applied, as described in steps 13 – 15 of the tutorial. There is one difference though, and that is the addition of “sparks” made from tiny pieces of fibre optic cable. This was an experiment, and I’m very pleased with how it turned out. As seen in the centre image below, after the first application of the acrylic gel, I used a set of fine tweezers to push five short approximately five millimetre lengths of fibre optic into the gel in what I hoped was a random pattern. The end of the fibres in the gel are touching the outer surface of the yellow LED. The acrylic gel is strong enough to hold the fibres in place as it dries, so long as you are careful not to disturb it. Once the initial layer of gel had dried, I then applied a second layer to further sculpt the shape of the ricochet effect, as seen in the image below on the right. This included sculpting the gel upwards to follow the paths of some of the fibres. This was intended to make the “trajectories” of the “sparks” (i.e. the ends of the fibre) look a little more natural. This required some very fine sculpting – I used a small piece of wire to get in between the fibres, rather than my normal sculpting tools.

As I’ve described previously for other members of this squad, the base model is a Primaris Assault Intercessor that I have modified to wear MkVI armour, in keeping with the War of the False Primarch theme for my Flesh Eaters army. You can read the latest from the War of the False Primarch campaign here. For those that are interested, my painting recipe for the red Flesh Eaters armour can be found in this previous post.

One aspect of this model that I painted differently was the battle damage on the pauldrons and left forearm. I haven’t added much battle damage or weathering to the Flesh Eaters in this project, other than some subtle dust and dirt around the feet. But with this miniature I really wanted to sell the idea of a Marine under fire, so I added some damage to hint at previous impacts. This was applied using the sponge method. The damage is Rhinox Hide, which I then highlighted along the lower edge with Evil Sunz Scarlet and Wild Rider Red to give a sense of depth.

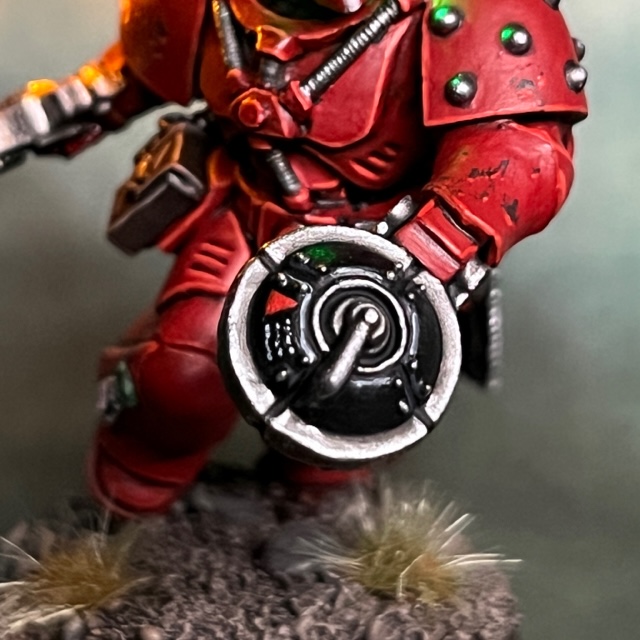

My plan from the start with this model was to have him be a grenadier in Kill Team, so I knew that I needed to give some visible indication of this specialism. If you look closely you may see that he has a number of grenades in his belt. His left hand originally held a melta bomb, but I wasn’t happy with the look. I tried switching it for a belt of grenades, but I wasn’t happy with that either. In the end I settled for the limpet mine as something that looked suitably dramatic and brutal! This came out of my bits box, but I think it was originally from a plastic Ork set. In hindsight I wish I’d filed off the rivets to make it look less Orky, but with the right paint job I still think it is feasibly an Imperial weapon!

That’s it for this week, I hope you’ve enjoyed learning about Brother Oram! As always, thanks very much for reading, and please don’t forget you can also follow my work on social media at Twitter, Mastodon and Instagram. I’ll see you again soon for some more LED miniatures!
